Solar Renewable Systems

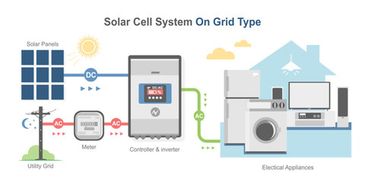

grid-tied solar system, is a solar power setup that directly connects to the public electricity grid, allowing a home or business to use solar energy and draw from the grid when needed. When more solar power is generated than consumed, the surplus is sent back to the grid and often earns credits for the user through a net metering system, while the grid provides power during nighttime or cloudy periods.  How an On-Grid Solar System Works

1. 1. Solar Panels:Solar panels capture sunlight and convert it into direct current (DC) electricity.
2. 2. Inverter:A DC-to-AC inverter converts this electricity into alternating current (AC) power, which is the standard form of electricity for homes and businesses.
3. 3. Electrical Service Panel:The AC electricity flows to the electrical panel, where it is used to power appliances and other devices in the building.
4. 4. Net Metering:A bidirectional meter tracks electricity flowing from the grid to the home and surplus solar energy flowing from the home to the grid.
5. 5. Grid Connection:
   • Excess Solar Power: When the solar system generates more electricity than the property is using, the extra power is exported to the grid.
   • Insufficient Solar Power: If the solar panels produce less electricity than needed, such as at night or during cloudy weather, the property draws the additional power from the grid.

Key Benefits

• Reduced Electricity Bills:Sending excess power to the grid can significantly lower your monthly electricity costs.
• Environmentally Friendly:On-grid systems reduce reliance on fossil fuels and help decrease carbon emissions.
• No Need for Batteries:Unlike off-grid systems, on-grid setups do not require expensive battery banks, simplifying the system and reducing maintenance.
• Reliable Backup Power:The connection to the grid acts as a built-in backup, ensuring a continuous power supply when solar production is low.

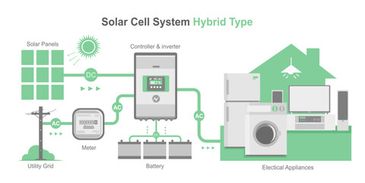

A hybrid solar system integrates solar panels, a battery storage system, and a connection to the main utility grid to provide a reliable and flexible power supply. During the day, solar panels generate electricity, powering your home and storing excess energy in batteries or sending it back to the grid. When solar power isn't sufficient, the system automatically draws from the batteries first, then switches to the grid for backup, ensuring continuous electricity. This video explains the working of a hybrid solar system:

.Works in Phases

1. Solar Power Generation: The solar panels capture sunlight and convert it into DC (direct current) electricity.
2. Power for Appliances: This DC power goes to a hybrid inverter, which converts it to AC (alternating current) to power your home's appliances.
3. Excess Energy Storage: Any electricity not immediately used is stored in the battery bank.
4. Grid Connection: If the solar output is more than what's needed and the batteries are full, the surplus energy is sent to the grid (often through net metering).
5. Nighttime & Low-Light Operation: When there's no sunlight, the system uses the stored battery power.
6. Grid Backup: If the stored battery power runs low, or during a power outage, the system seamlessly switches to the utility grid for uninterrupted power.

Key Components

• Solar Panels: Capture sunlight to generate electricity.
• Hybrid Inverter: Converts DC to AC and manages energy flow between panels, batteries, and the grid.
• Battery Storage: Stores excess solar energy for later use.
• Grid Connection: Provides backup power and may allow for selling excess electricity to the grid.

Benefits

• Uninterrupted Power: Ensures continuous electricity supply, even during power outages.
• Reduced Electricity Bills: Maximizes the use of solar energy, reducing reliance on the grid.
• Energy Independence: Offers greater control over your power supply.
• Grid Benefits: Excess power can be sent to the grid, sometimes earning you credits.

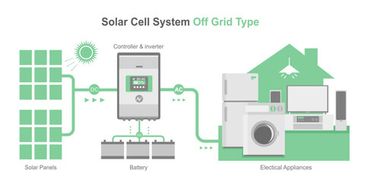

An off-grid solar system works by using solar panels to convert sunlight into DC electricity, which is then regulated by a charge controller to safely charge batteries. The stored energy is then converted to usable AC power by an inverter to power household appliances and devices, providing electricity independent of the main utility grid. This allows homes in remote areas to have reliable power, even at night or during cloudy weather.
Here's a breakdown of the process:
1. Sunlight to DC Power:
Solar panels capture sunlight and convert it into direct current (DC) electricity.
2. DC to Battery Charging:
The DC current flows to a charge controller, which regulates the voltage and current to safely and efficiently charge the system's batteries.
3. Energy Storage:
The batteries store the DC electricity for later use, ensuring power is available during periods with no sunlight, such as at night or on cloudy days.
4. DC to AC Conversion:
An inverter converts the stored DC power from the batteries (or directly from the panels during the day) into alternating current (AC) electricity, which is the standard power used by most home appliances and devices.
5. Powering Your Home:
The AC power from the inverter is then sent to power your home's electrical loads.
This video explains how off-grid solar systems work, including the key components:
Solar Panels: Convert sunlight into DC electricity.
Charge Controller: Manages the flow of electricity from the panels to the batteries, preventing overcharging.
Batteries: Store the energy generated by the solar panels.
Inverter: Converts the DC electricity from the batteries into usable AC electricity for your home.
Mounting Structure: Securely positions the solar panels.
