The primary types of on-grid inverters

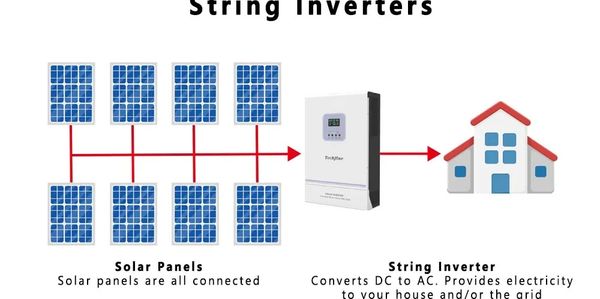

A string on-grid inverter is
a solar power system component that converts the direct current (DC) electricity from multiple solar panels, wired together in a series, into alternating current (AC) electricity that can be fed into the power grid. This contrasts with microinverters, which convert DC to AC at each individual solar panel

 How a string on-grid inverter works

1. Series wiring: A group of solar panels is wired together in a "string" to increase the combined voltage.
2. DC to AC conversion: The string of panels is connected to a central inverter, which is usually installed on the side of a house or in a garage. The inverter then converts the DC power from the entire string into usable AC power for a home or business.
3. Maximum power point tracking (MPPT): To maximize power output, the inverter uses an MPPT algorithm to monitor and adjust the system's voltage and current.
4. Grid connection: Once converted, the AC electricity powers the building's electrical needs. Any excess power is sent back to the utility grid through the electricity meter.

Advantages of a string inverter

• Lower cost: A single string inverter is less expensive than installing a microinverter for each panel, making it a more affordable solution for many solar installations.
• Simple design and installation: Having only one central inverter simplifies the installation process and reduces the number of components on the roof.
• Easier maintenance: A central inverter is easily accessible for troubleshooting and repairs, unlike microinverters, which require access to the roof.
• High efficiency under ideal conditions: In full-sun conditions with minimal shading, string inverters offer high conversion efficiency, often ranging from 95% to 98%.

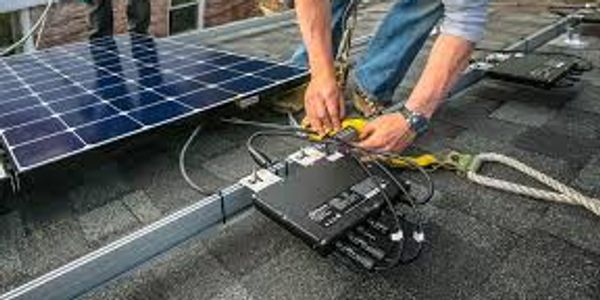

 A microinverter is a small electronic device that converts the direct current (DC) power from an individual solar panel into usable alternating current (AC) power. Unlike a traditional, single "string inverter" that processes power from an entire array of panels, a microinverter is installed directly on or next to each individual panel. This design allows each panel to operate independently, maximizing the system's overall energy production. How a microinverter worksThe fundamental process of a microinverter is the same as any inverter, but it is applied at a granular level:

1. DC Input: A solar panel generates DC electricity from sunlight, which is then fed directly into the microinverter connected to it.
2. DC-to-AC Conversion: The microinverter converts the incoming DC electricity into AC electricity on the spot, at the panel.
3. Maximum Power Point Tracking (MPPT): The microinverter uses an independent MPPT for each panel to ensure it operates at its maximum efficiency. This means that if one panel is shaded or dirty, it does not reduce the output of the other panels.
4. AC Output: The newly converted AC electricity from all the microinverters is combined and sent to the home's electrical panel or the power grid.

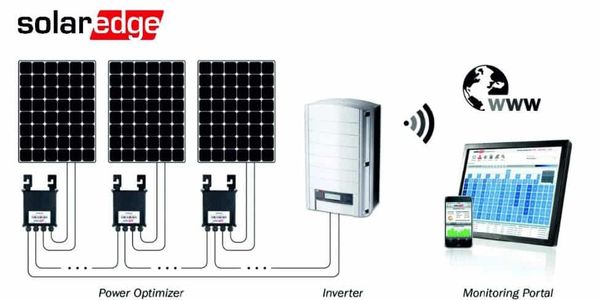

 An Optimizer inverter refers to a two-part system used in solar power installations, featuring individual power optimizers for each solar panel that work with a single central inverter. This hybrid approach maximizes the energy output of the entire solar array by mitigating the effects of shading, different panel orientations, and module mismatch. How an Optimizer inverter system worksThe system's two main components handle separate functions to optimize performance.

• Power optimizers: These small DC-to-DC converters are attached to each individual solar panel. Each optimizer performs Maximum Power Point Tracking (MPPT) for its specific panel. Instead of converting the power to AC, it conditions the DC voltage from the panel and sends the "optimized" power to a central inverter.
• Central inverter: A single, central string inverter then takes the conditioned DC power from all the panels and converts it into usable AC power for a home or business.

Key benefits and features

• Mitigates shade issues: In a traditional string inverter system, a single shaded panel can drag down the performance of the entire string. With optimizers, each panel is managed independently, so a shaded panel will not reduce the output of the unshaded panels.
• Individual panel monitoring: Optimizers send performance data from each panel to a monitoring platform, allowing homeowners to pinpoint issues with a single panel rather than guessing which one is underperforming.
• Flexible installation: Because each panel is optimized individually, installers can place panels on different roof faces and at different tilts. This is particularly useful for roofs with complex shapes.
• Cost-effective: Optimizer systems offer many of the same benefits as microinverters (panel-level optimization) but at a lower cost, as they use a single central inverter instead of an inverter for each panel.
• Enhanced safety: Some systems, like those from SolarEdge, feature a SafeDC feature that automatically reduces the high-voltage DC output to a safe level when the inverter is shut down.

 A central solar inverter is a large, high-capacity inverter used in large-scale solar farms and commercial installations to convert the combined direct current (DC) power from multiple solar panels into usable alternating current (AC) power. How it worksMultiple solar panels are connected in series to form strings, which are then connected in parallel to increase voltage and current. All the DC power is sent to a central inverter that converts it to AC power. This AC power is synchronized with the grid. Modern central inverters also have monitoring systems. ApplicationsCentral inverters are best suited for large projects with uniform solar panel installation and consistent sunlight. They are used in utility-scale solar farms, commercial and industrial systems, hybrid systems with battery storage, and agricultural applications. AdvantagesCentral inverters offer advantages like lower cost per watt for large systems, easier installation, high power output, and simpler maintenance. 📷DisadvantagesHowever, they have drawbacks such as being a single point of failure and being susceptible to shading, which affects the entire array. The replacement cost for a central inverter can also be high
