CHOOSING THE RIGHT SOLAR SYSTEM

Solar cells convert sunlight into electricity using the photovoltaic effect. They consist of photovoltaic (PV) cells made from semiconductor materials like silicon. When sunlight strikes these cells, it excites electrons, creating electron-hole pairs. An electric field at the junction between the positively doped (p-type) and negatively doped (n-type) layers of the semiconductor separates these charges, generating a flow of electrons. This flow creates direct current (DC) electricity, which is then converted to alternating current (AC) by an inverter for use in homes and businesses. Factors such as material quality, temperature, and positioning affect the efficiency of this energy conversion process.

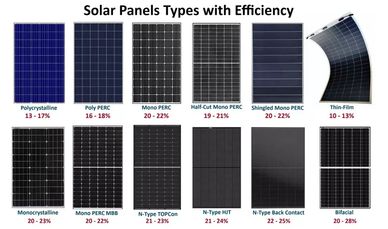

There are three main types of solar panels commonly used today: monocrystalline, polycrystalline, and thin film. Each type has its unique characteristics, making them suitable for different applications and environments.

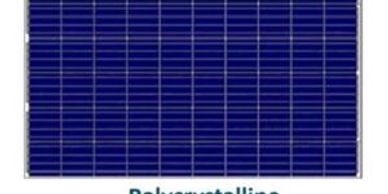

Polycrystalline solar panels are made from silicon crystals that are melted together. They are characterized by their blue color and speckled appearance.

The silicon used in polycrystalline panels is melted and poured into a square mold, then cooled and cut into square wafers. This process is simpler and less expensive than the one used for monocrystalline panels.

• Cost-Effective: They are less expensive to manufacture and purchase than monocrystalline panels.
• Efficiency: While they are less efficient than monocrystalline panels, they still offer good performance, typically ranging from 13% to 18%.
• Durability: Polycrystalline panels are durable and have a lifespan comparable to monocrystalline panels.

• Lower Efficiency: They are less efficient than monocrystalline panels, requiring more space to generate the same amount of electricity.
• Heat Sensitivity: Their performance can decrease at higher temperatures.

Polycrystalline panels are suitable for larger installations where space is not a constraint, such as solar farms and large commercial rooftops.

 Advanced solar panel technologiesModern technology has developed specialized versions of solar panels that offer higher efficiency or enhanced performance.

• PERC (Passivated Emitter and Rear Cell): An improvement on traditional silicon solar cells that adds a layer to the back of the cell. This layer captures more light and enhances efficiency, particularly in low-light conditions.
  • Mono-PERC panels are monocrystalline panels featuring this technology, making them a popular choice for high efficiency in residential and commercial installations.
• TOPCon (Tunnel Oxide Passivated Contact): A newer technology that adds a thin oxide layer to further improve cell efficiency and long-term performance beyond what PERC technology offers.
  • N-Type cells are typically used in TOPCon technology and do not experience the same degradation in performance over time as older P-Type cells.

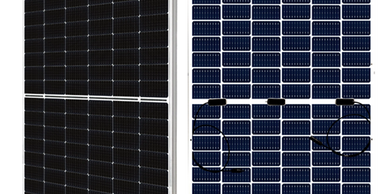

• Bifacial panels: These panels can capture sunlight and produce power from both the front and back sides. When installed over reflective surfaces, they can significantly increase total energy output.
• Half-cut cells: This technology involves cutting standard solar cells in half. This reduces electrical resistance, which in turn improves overall efficiency and enhances performance in shaded conditions.
• Shingled panels: Made with overlapping solar cells, similar to roof shingles, this design eliminates the ribbon connectors between cells. This results in higher power density, better aesthetics, and increased resilience to shading.
• IBC (Interdigitated Back Contact) solar cells: By moving the electrical contacts to the back of the cell, these panels eliminate shading on the front surface caused by the metal grid. This can result in higher efficiency and a sleek, all-black appearance.

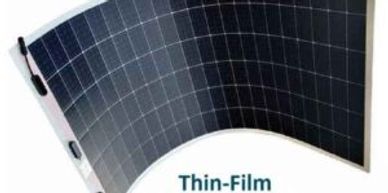

Thin-film solar panels are made by depositing one or more thin layers of photovoltaic material onto a substrate. They can be made from a variety of materials, including cadmium telluride (CdTe), amorphous silicon (a-Si), and copper indium gallium selenide (CIGS).

The process involves depositing the photovoltaic material onto a substrate such as glass, plastic, or metal. This method allows for flexibility in the design and application of the panels.

• Versatility: Thin-film panels can be made flexible, allowing them to be used in a variety of applications, including curved surfaces and portable solar devices.
• Cost: They are generally less expensive to produce than crystalline-based  panels.
• Performance in Shade: Thin-film panels tend to perform better in low-light conditions and are less affected by shading.

• Efficiency: They have lower efficiency rates, typically ranging from 10% to 12% max up to 18%, which means more panels are needed to generate the same amount of electricity.
• Space Requirement: Due to their lower efficiency, they require more space for installation.

Thin-film panels are ideal for applications where flexibility is needed, such as on building-integrated photovoltaics (BIPV), vehicles, and portable devices.

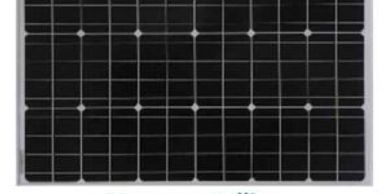

Monocrystalline solar panels are made from a single continuous crystal structure. They are easily recognizable by their uniform dark color and rounded edges.

Discover moreSolar cellsPower inverterSolar panelsolar cellElectronicInvertersPV) cellsPanelsSolar PanelsSolar Panel

The production of monocrystalline panels involves the Czochralski method, where a single crystal seed is placed in molten silicon. The seed is then slowly pulled upwards, allowing the crystal to form around it. Once the crystal is formed, it is sliced into thin wafers to create the solar cells.

• High Efficiency: Monocrystalline panels have the highest efficiency rates, typically ranging from 15% to 22%. This means they can produce more electricity from the same amount of sunlight compared to other types.
• Longevity: These panels tend to have longer lifespans, often backed by warranties of 25 years or more.
• Space-Efficient: Due to their higher efficiency, fewer panels are required to achieve the same power output, making them ideal for smaller spaces.

• Cost: They are generally more expensive to produce, and purchase compared to other types.
• Performance in Shade: Their performance can significantly drop if part of the panel is shaded.
  Applications:
  Monocrystalline panels are best suited for residential and commercial installations where space is limited, and high efficiency is paramount.
